HI-HDRL-2000

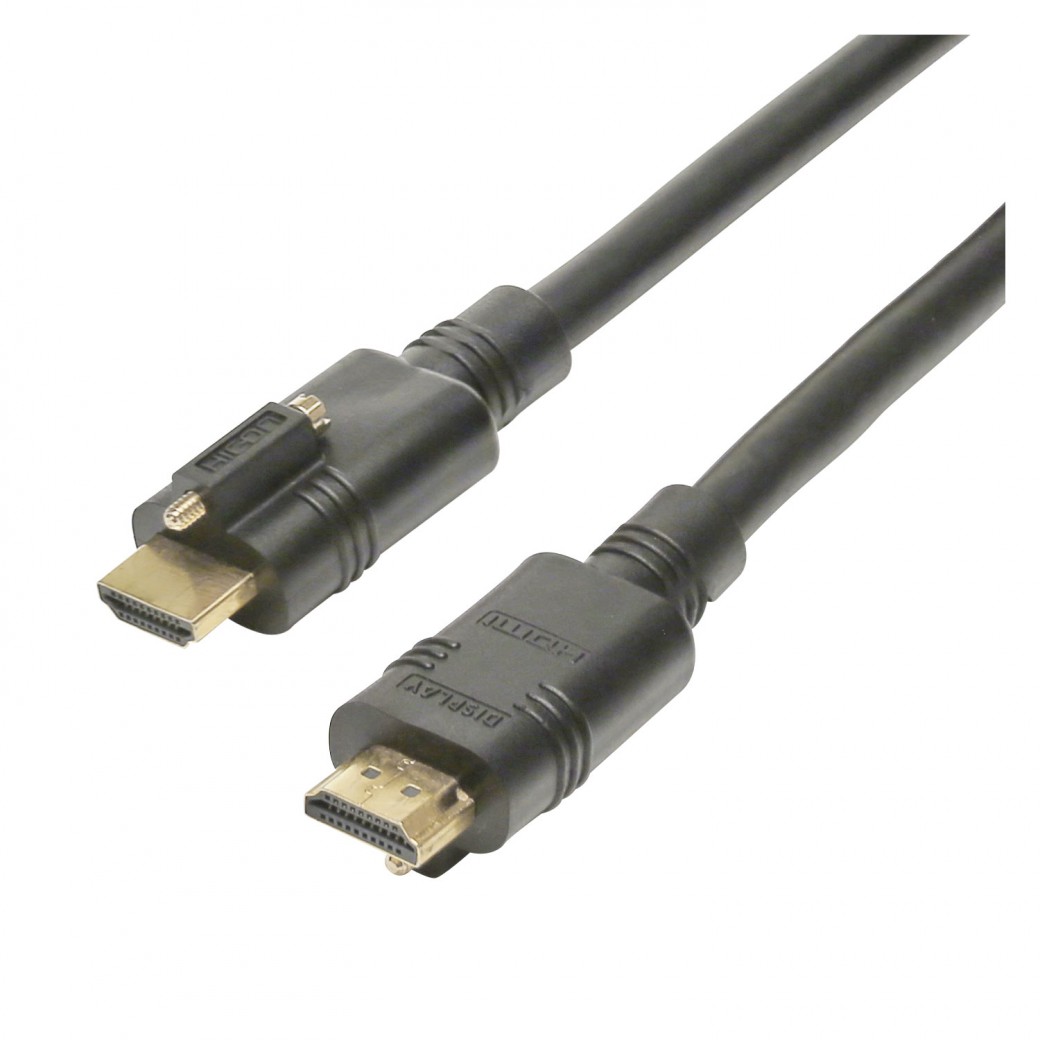

multimedia cable HI-HDRL-2000 black

Rs. 1996871

The long-distance runner

The high-quality HDMI® High Speed with Ethernet cable is equipped with a highly flexible 8mm cable (20m and 30m version with 9mm) and high-quality connectors in the proven, easy-grip HICON design with integrated screw system. The full HDMI® 2.0b bandwidth of 18GBit/s is guaranteed for all lengths up to 20m. The connection cables are equipped with an integrated chipset for signal enhancement and function only directionally bound.

HDMI (High Definition Multimedia Interface) is an all-digital interface that was developed by the consumer electronics branch in cooperation with the motion picture industry. HDMI transmits digital video and multi-channel audio data loss-free and bi-directional without data compression via a 19-pole compact connector with a max. bandwidth of 18,0 Gbit/s (HDMI® 2.0) or 10.22 Gbit/s (HDMI®1.4) [max. resolution UHD/4K@60fps). A audio return channel (ARC) as well as the ethernet function are integrated. A universal remote control of all devices connected via HDMI is possible with the built-in AV link protocol.

COLOR

Add to cart

Details
Specs
Tender Specification

mobile studio install stage ela hifi

Article number	HI-HDRL-2000
Application	multimedia cable
Connector-Brand	HICON
Additional Function	High Speed with Ethernet
Type	HDMI
Type (detailed)	HDMI male
Product Diameter	9
Colour	black
EAN	4049371813747

Advantage

High transmission quality due to the usw of fine stranding
Very rugged owing to the thick, soft PVC jacket
Good shielding due to dence helical copper mesh screen
High flexibility makes it easy to reel
Affordable price

Application:

Stage application
Home recording

Technical Data:

Properties: OFC oxygen free copper
Properties: Analog
Application area: Installation
Application area: Mobile outdoor / indoor
Application area: Stage / live
Application: Microphone Cable
Colour: black
Colour detailed: black
Signal transmission: symmetrical
Jacket material: PVC

Miscellaneous:
- LONG DISTANCE with built-in repeater and clip-lock
- integrated screwing system with UNC4-40 screw in connector
- copper cable with 100% shielding
- Soft PVC jacket
- connectors in grippy HICON design
- gold-plated contacts and gold-plated housing
- mechanically high-quality bend protection with good strain relief
- guaranteed 18G bandwidth up to 20m cable length
- 4K60 4:4:4
- HDR
- 3D
- high-quality Redmere chipset integrated
- packed in zipper bag
- Cable design 20m & 30m: 5x2xAWG24+4xAWG24
- Cable design 20m & 30m: 5x2xAWG24+4xAWG24
- Cable diameter 10m & 15m version: 8.0 mm
- Cable diameter 20m & 30m version: 9,0 mm

Technical Data:
- Article number: HI-HDRL
- Article number: HI-HDRL-2000
- Name: HDMI® LongDistance High-Quality 18 Gbit/s
- EAN: 4049371813747
- Application: multimedia cable
- Colour: black
- diameter Ø: 9 mm
- diameter Ø: 0.3543 "
- Connector-Brand: HICON
- Additional function: High Speed with Ethernet
- Type: HDMI
- Type (detailed): HDMI male
- Length: 20 m
- Length: 65.62 ft
