425-0151

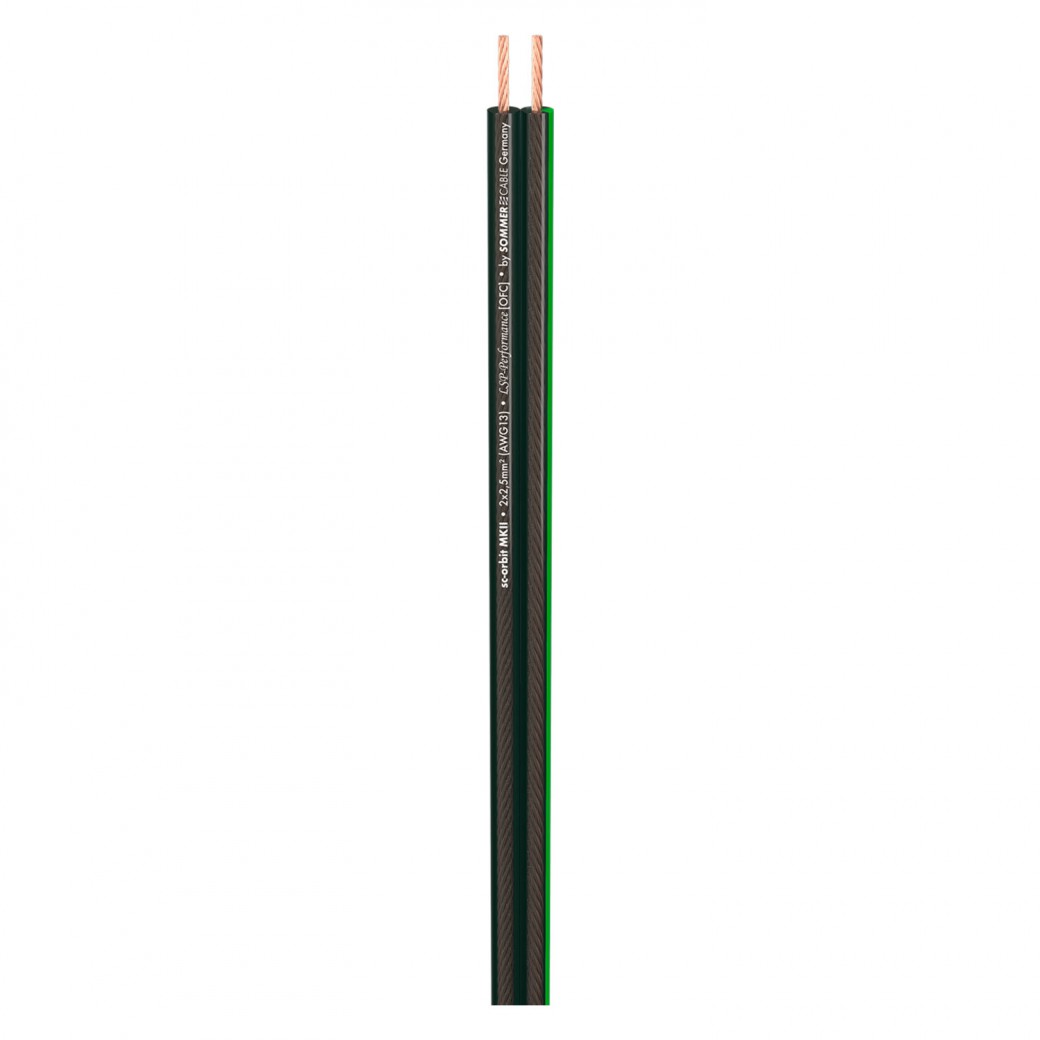

Speaker Cable 425-0151 black

Rs. 39127

You can easily hear the grass grow...

with our SC-Orbit 225 MKII, HighEnd. If you care for true, natural sound and dynamics, then the SC-Orbit 225 MKII, HighEnd is your cable. At the end of the audio signal path is the loudspeaker, but just how the music gets there is nowhere near bananas! You already have the good speaker, now all you need is the cable – and the difference is audible!
Here too we offer top quality with an attractive look, because the cables are often laid visibly – or invisibly, therefore as flat as possible is the name of the game. Due to a very tight litz stranding, the copper strand has the necessary surface for a clean transmission of the treble range. The individual wires are reverse-braided. So this cable will always return to its original position, even after extreme twisting.

COLOR

Add to cart

Details
Specs
Tender Specification

mobile studio install stage ela hifi
analogofc

Advantages:

Absolutely neutral transmission quality due to fine, tightly tranded copper wires
Highly flexible and easy to reel due to rubberlike PVC jacket
Noble finish with a black, transparent outer jacket
Very low impedance values due to special litz stranding

Application:

Connection to HiFi-High End Speaker Systems
Interior wiring of HiFi Loudspeakers and PA Systems
For fixed installation
Car hifi connection

Article number	425-0151
Application	Speaker Cable
Colour	black
Construction	2LIY2,50mm
Jacket material	PVC
Jacket Ø [mm]	0,00
Number of channels (audio)	1
Inner conductor (audio)	2
Inner conductor (audio) [mm²]	2,50
Inner conductor Ø (audio) [mm]	1,78
AWG (audio)	13
Copper strands (audio)	651
Copper strand Ø (audio) [mm]	0,07
Weight per 1 m [g]	90
UV-resistant	yes
Style variant	twin
Width [mm]	10,2
Height [mm]	4,8
Capac. cond./cond. per 1 m (audio)[pF]	60
EAN	4049371002967
BPVo-Euroclass	Fca

Advantage

High transmission quality due to the usw of fine stranding
Very rugged owing to the thick, soft PVC jacket
Good shielding due to dence helical copper mesh screen
High flexibility makes it easy to reel
Affordable price

Application:

Stage application
Home recording

Technical Data:

Properties: OFC oxygen free copper
Properties: Analog
Application area: Installation
Application area: Mobile outdoor / indoor
Application area: Stage / live
Application: Microphone Cable
Colour: black
Colour detailed: black
Signal transmission: symmetrical
Jacket material: PVC

SC-Orbit 225 MKII, HighEnd
Speaker Cable

Advantages:
- Absolutely neutral transmission quality due to fine, tightly tranded copper wires
- Highly flexible and easy to reel due to rubberlike PVC jacket
- Noble finish with a black, transparent outer jacket
- Very low impedance values due to special litz stranding

Application:
- Connection to HiFi-High End Speaker Systems
- Interior wiring of HiFi Loudspeakers and PA Systems
- For fixed installation
- Car hifi connection

Technical Data:
- Article number: 425-0151
- Name: SC-Orbit 225 MKII, HighEnd
- EAN: 4049371002967
- Properties: Analog
- Properties: OFC oxygen free copper
- Application area: Installation
- Application area: Studio / Broadcast
- Application: Speaker Cable
- Colour: transparent
- Colour: black
- Construction: 2LIY2,50mm²
- Jacket material: PVC
- Jacket Ø: 0,00 mm
- Jacket Ø: 0 "
- Number of Channels (audio): 1
- Inner conductor (audio): 2
- Inner conductor (audio): 2,50 mm²
- Inner conductor (audio): 0.0039 sqin
- Inner conductor Ø (audio): 1,78 mm
- Inner conductor Ø (audio): 0.0701 "
- AWG (audio): 13
- Copper strands (audio): 651
- Copper strand Ø (audio): 0,07 mm
- Copper strand Ø (audio): 0.0028 "
- Weight per 1 m: 90 g
- Weight at 1000 ft.: 60.5624 lbs
- UV-resistant: yes
- Fire load per m: 0,17 kWh
- Style variant: twin
- Packing: 100 m spool
- Temperature min.: -30 °C
- Temperature max.: 70 °C
- Width: 10,2 mm
- Width: 0.4016 "
- Height: 4,8 mm
- Height: 0.189 "
- Capac. cond./cond. per 1 m (audio): 60 pF
- Capacity wire/wire at 1 ft. (audio): 18.288 pF
- Insulation resist. per 1 km: 0,01 GΩ
- Insulation resist. per 1000 feet: 0.003 GΩ
- Insulation resist. per 1 km (audio): 0,01 GΩ
- Insulation resist. per 1000 feet (audio): 0.003 GΩ
- Conductor resistance per 1 km: 7,8 Ω
- Conductor resistance per 1000 ft.: 2.3774 Ω
- BPVo-Euroclass: Fca
