425-0310

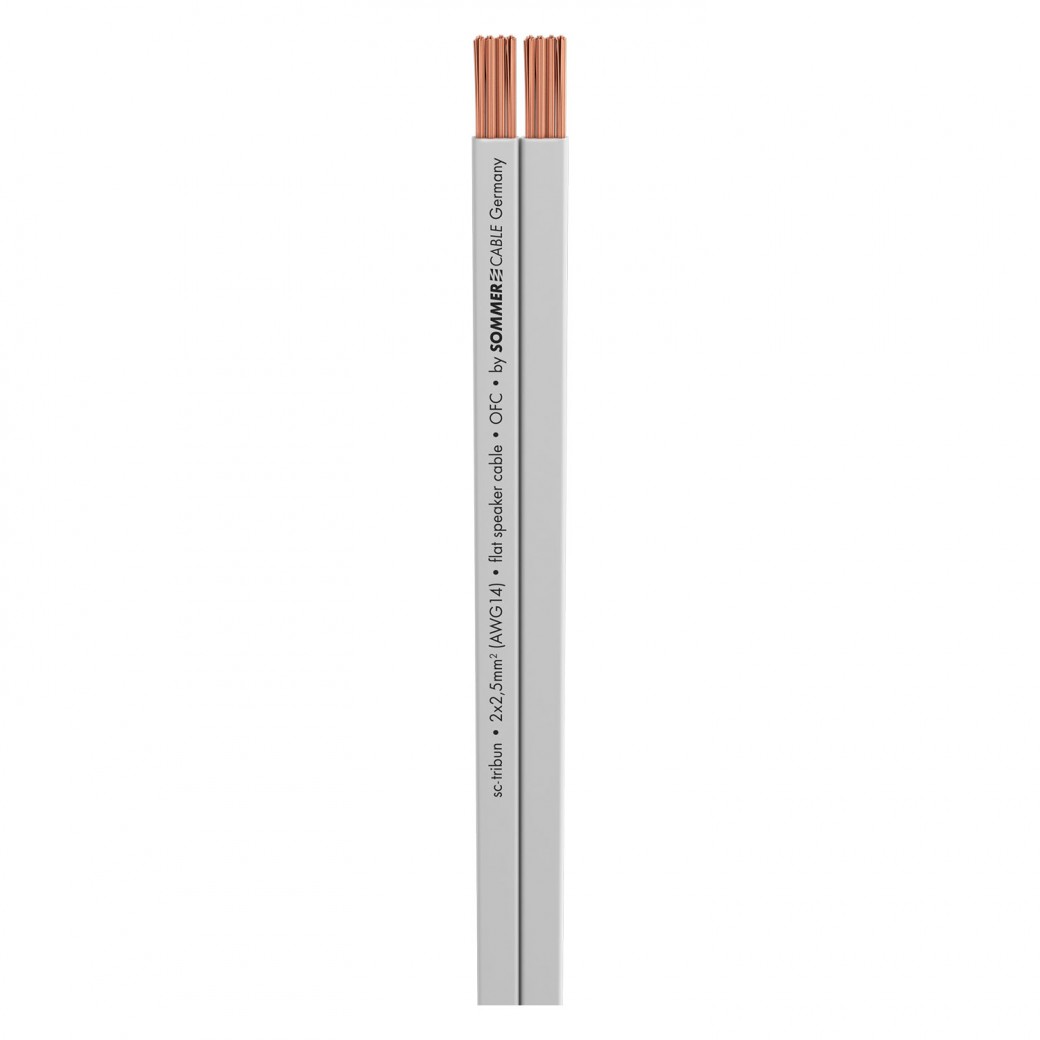

Speaker Cable 425-0310 white

Rs. 36010

Playing hide and seek...

you’re welcome to do this with our SC-Tribun, Flat-Design loudspeaker cable, because it’s so flat that you can barely see it once it has been laid. It can be perfectly laid under carpets, behind decorative strips, on the ceiling and underneath your furniture. The SC-Tribun, Flat-Design is almost invisible. And it’s all white, so that not even a mouse will recognise it! This makes it ideal for the installation in buildings (e.g. in hotels, bars,
sporting arenas) and churches. The edges are slanted, so it’s impossible to get stuck with your shoes or a rollator. The bottom side is flat and finished, which allows you to affix a double-sided adhesive tape for universal attachment.
The SC-Tribun, Flat-Design is easy to splice and only about 2 mm high!

COLOR

Add to cart

Details
Specs
Tender Specification

mobile studio install stage ela hifi
analogofc

Advantages:

Good transmission quality due to the use of oxygen-free copper wires
Extremely flat and almost invisible laying
Incredibly flexible and easy to handle
Designed like a decorative strip, hence barely noticeable
Affordable price

Application:

Fixed installation in building technology
Almost invisible connection of your hifi system
Church acoustics

Article number	425-0310
Application	Speaker Cable
Colour	white
Construction	2LIY2,50mm²
Jacket material	PVC
Jacket Ø [mm]	0,00
Number of channels (audio)	1
Inner conductor (audio)	2
Inner conductor (audio) [mm²]	2,50
Inner conductor Ø (audio) [mm]	1,78
AWG (audio)	13
Copper strands (audio)	320
Copper strand Ø (audio) [mm]	0,10
Weight per 1 m [g]	72
Style variant	Twin, flat
Width [mm]	14,6
Height [mm]	2,6
Capac. cond./cond. per 1 m (audio)[pF]	60
EAN	4049371002981
BPVo-Euroclass	Fca

Advantage

High transmission quality due to the usw of fine stranding
Very rugged owing to the thick, soft PVC jacket
Good shielding due to dence helical copper mesh screen
High flexibility makes it easy to reel
Affordable price

Application:

Stage application
Home recording

Technical Data:

Properties: OFC oxygen free copper
Properties: Analog
Application area: Installation
Application area: Mobile outdoor / indoor
Application area: Stage / live
Application: Microphone Cable
Colour: black
Colour detailed: black
Signal transmission: symmetrical
Jacket material: PVC

SC-Tribun, Flat-Design
Speaker Cable

Advantages:
- Good transmission quality due to the use of oxygen-free copper wires
- Extremely flat and almost invisible laying
- Incredibly flexible and easy to handle
- Designed like a decorative strip, hence barely noticeable
- Affordable price

Application:
- Fixed installation in building technology
- Almost invisible connection of your hifi system
- Church acoustics

Technical Data:
- Article number: 425-0310
- Name: SC-Tribun, Flat-Design
- EAN: 4049371002981
- Properties: OFC oxygen free copper
- Properties: Analog
- Application area: Installation
- Application area: ELA 100 V
- Application: Speaker Cable
- Colour: white
- Construction: 2LIY2,50mm²
- Jacket material: PVC
- Jacket Ø: 0,00 mm
- Jacket Ø: 0 "
- Number of Channels (audio): 1
- Inner conductor (audio): 2
- Inner conductor (audio): 2,50 mm²
- Inner conductor (audio): 0.0039 sqin
- Inner conductor Ø (audio): 1,78 mm
- Inner conductor Ø (audio): 0.0701 "
- AWG (audio): 13
- Copper strands (audio): 320
- Copper strand Ø (audio): 0,10 mm
- Copper strand Ø (audio): 0.0039 "
- Weight per 1 m: 72 g
- Weight at 1000 ft.: 48.45 lbs
- Style variant: Twin, flat
- Packing: 500 m spool
- Packing: 100 m spool
- Temperature min.: -30 °C
- Temperature max.: 70 °C
- Width: 14,6 mm
- Width: 0.5748 "
- Height: 2,6 mm
- Height: 0.1024 "
- Capac. cond./cond. per 1 m (audio): 60 pF
- Capacity wire/wire at 1 ft. (audio): 18.288 pF
- Insulation resist. per 1 km: 0,02 GΩ
- Insulation resist. per 1000 feet: 0.0061 GΩ
- Insulation resist. per 1 km (audio): 0,02 GΩ
- Insulation resist. per 1000 feet (audio): 0.0061 GΩ
- Conductor resistance per 1 km: 7,9 Ω
- Conductor resistance per 1000 ft.: 2.4079 Ω
- BPVo-Euroclass: Fca
