Product Details

GT450

Rs. 1596219

Roll over Beethoven...

or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistent to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage.
The reels are empty, i.e. they are delivered without cable and cover. We have the complete SCHILL-assortment in stock – just ask us !

Add to cart

Details
Specs
Tender Specification

mobile studio install stage ela hifi

Article number	GT450
Brand	SCHILL
Type	Kabeltrommel
Material	Solid rubber
Width [mm]	187
EAN	4013046280004

Advantage

High transmission quality due to the usw of fine stranding
Very rugged owing to the thick, soft PVC jacket
Good shielding due to dence helical copper mesh screen
High flexibility makes it easy to reel
Affordable price

Application:

Stage application
Home recording

Technical Data:

Properties: OFC oxygen free copper
Properties: Analog
Application area: Installation
Application area: Mobile outdoor / indoor
Application area: Stage / live
Application: Microphone Cable
Colour: black
Colour detailed: black
Signal transmission: symmetrical
Jacket material: PVC

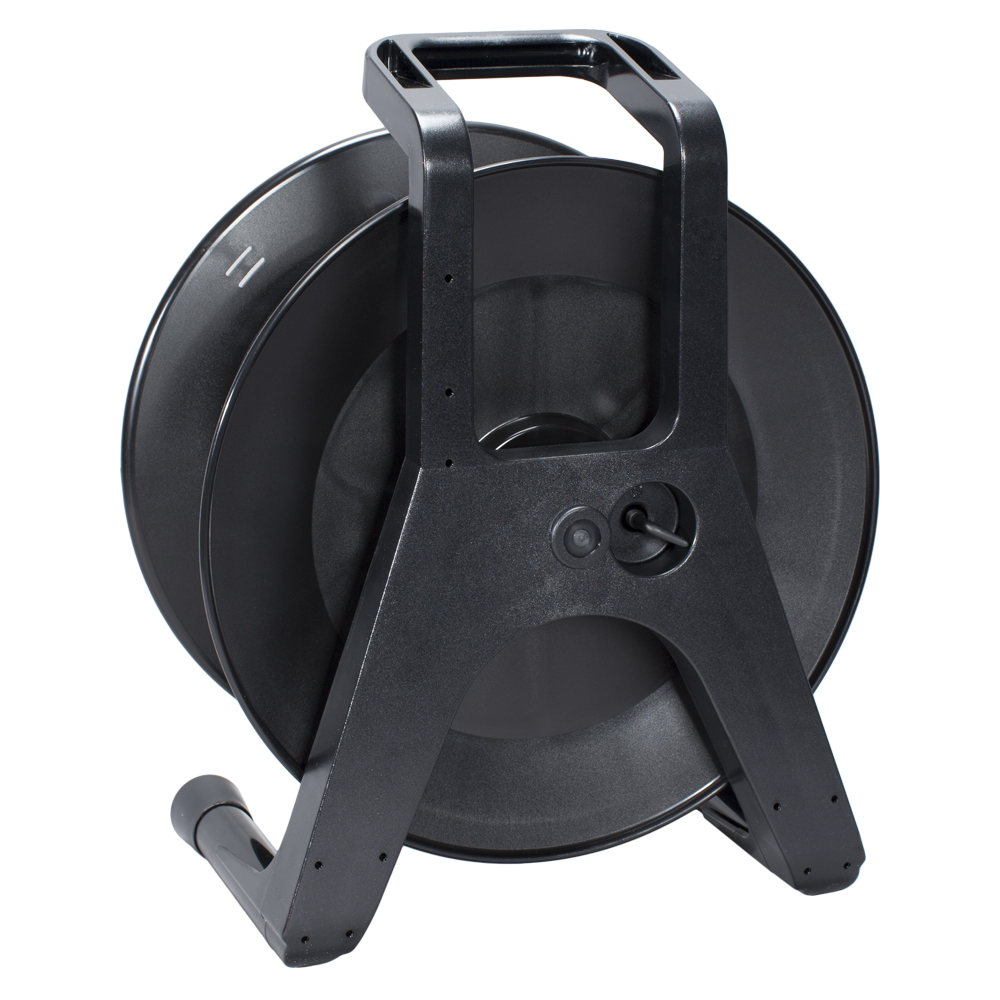

SCHILL Kabeltrommel, GT450, core: 296 mm, thread width: 187 mm

Technical Data:
- Material: Solid rubber
- Core-Ø: 296 mm
- Outer-Ø: 445 mm
- Wind. width: 187 mm
- Wind. length max. at Ø 7,0 mm: 301 m
- Wind. length max. at Ø 8,0 mm: 240 m
- Wind. length max. at Ø 9,0 mm: 185 m
- Wind. length max. at Ø 12,0 mm: 104 m
- Wind. length max. at Ø 14,0 mm: 75 m
- Wind. length max. at Ø 20,0 mm: 31 m
- Wind. length max. at Ø 26,0 mm: 16 m
- Wind. length max. at Ø 30,0 mm: 13 m
